Ground calcium carbonate is the workhorse filler in rigid PVC pipe. This guide explains how pipe producers match GCC grade, particle size distribution and surface coating to pressure, drainage and conduit applications — and what to confirm before ordering.
Rigid PVC pipe is one of the largest single outlets for ground calcium carbonate (GCC). Extruders add it for three reasons at once: it replaces part of the expensive PVC resin, it lifts stiffness and dimensional stability, and — with the right grade — it improves the surface of the finished pipe. But "calcium carbonate for PVC pipe" is not a single product. A pressure pipe, a buried drainage line and an electrical conduit each pull the filler in a different direction. This guide explains how pipe producers qualify GCC for rigid PVC, which calcium carbonate grades suit which pipe, and what to confirm before ordering.
Why calcium carbonate is the default filler in rigid PVC
Calcium carbonate sits between the processing behaviour of the compound and the mechanical demands of the pipe. Used well, it earns its place; used purely as a cheap bulk extender, it shows up as low-temperature impact failures and rough surfaces. The functions formulators ask a GCC to perform are consistent across PVC pipe plants:
- Cost displacement. Replacing part of the resin with a mineral filler lowers compound cost, which is why GCC is the most widely used filler in uPVC pipe.
- Stiffness and ring rigidity. The filler raises the modulus of the compound, helping the pipe hold its shape under burial load and internal pressure.
- Dimensional control. During cooling and sizing, a well-dispersed filler helps keep wall thickness and roundness consistent.
- Surface and wall quality. Fine, coated grades disperse evenly and give a smoother inner and outer surface, reducing the defects that come from agglomerated or oversize particles.
- Processing support. A properly treated filler can improve heat transfer and reduce the stickiness that complicates extrusion.
The point for buyers is that these benefits depend on the grade, not on the name "calcium carbonate". Two powders with the same mesh number can behave completely differently in a pipe line if their particle size distribution or surface treatment differ.
Matching GCC to the pipe application
Pipe standards and end-use conditions set very different ceilings for filler. The two families below are the ones buyers ask us about most often; the plastics application page covers the wider picture.
Pressure pipe and potable-water systems
Pressure-rated uPVC pipe for water supply is the most demanding case. Here impact resistance and long-term hydrostatic strength govern the formulation, so the filler must disperse cleanly and must not act as a stress concentrator. Producers of pressure pipe almost always specify a fine, surface-treated GCC rather than a coarse, untreated powder, and they keep the loading conservative. The specification a buyer should expect to see includes a tight top-cut — no oversize tail — and a stated coating level, because an oversize particle is exactly the kind of defect that nucleates a crack under pressure.
Non-pressure drainage, sewer and conduit
Drainage pipe, sewer pipe and electrical conduit tolerate a higher filler content because they do not carry long-term hoop stress. Formulators can therefore use a more economical grade and raise the loading, provided the pipe still meets its low-temperature impact and ring-stiffness requirements. This is where a mid-range 800 mesh calcium carbonate powder or a 600 mesh grade is commonly considered — again with the caveat that impact performance at low temperature is usually the property that limits how far loading can go.
What actually decides whether a GCC grade works
Mesh number alone is a poor buying specification. Three things control performance in a PVC pipe line:
Particle size distribution, not the headline mesh
A mesh number describes a sieve cut, not the whole curve. What matters is the distribution: a narrow curve packs and disperses better, while a long coarse tail — particles that never should have left the mill — concentrates stress and produces surface defects. Buyers should ask for the distribution, not just a single mesh figure.
Surface coating
Untreated calcium carbonate is hydrophilic and bonds poorly to PVC resin; it can plate out and cause processing problems. A stearic-acid (activated) surface treatment makes the particle compatible with the resin, improves dispersion, lowers moisture pickup and reduces agglomeration. For pipe and profile extrusion a coated grade is the norm rather than the exception.
Moisture, whiteness and chemistry
Residual moisture flashes into bubbles at extrusion temperature, so moisture control matters as much in a filler as in the resin. Whiteness and colour stability matter for pipe that will be visible and for any product where a yellowish tint is a reject. Consistent chemistry — a stable calcium carbonate source with low iron and other colouring impurities — keeps pipe colour stable batch after batch.
What we supply

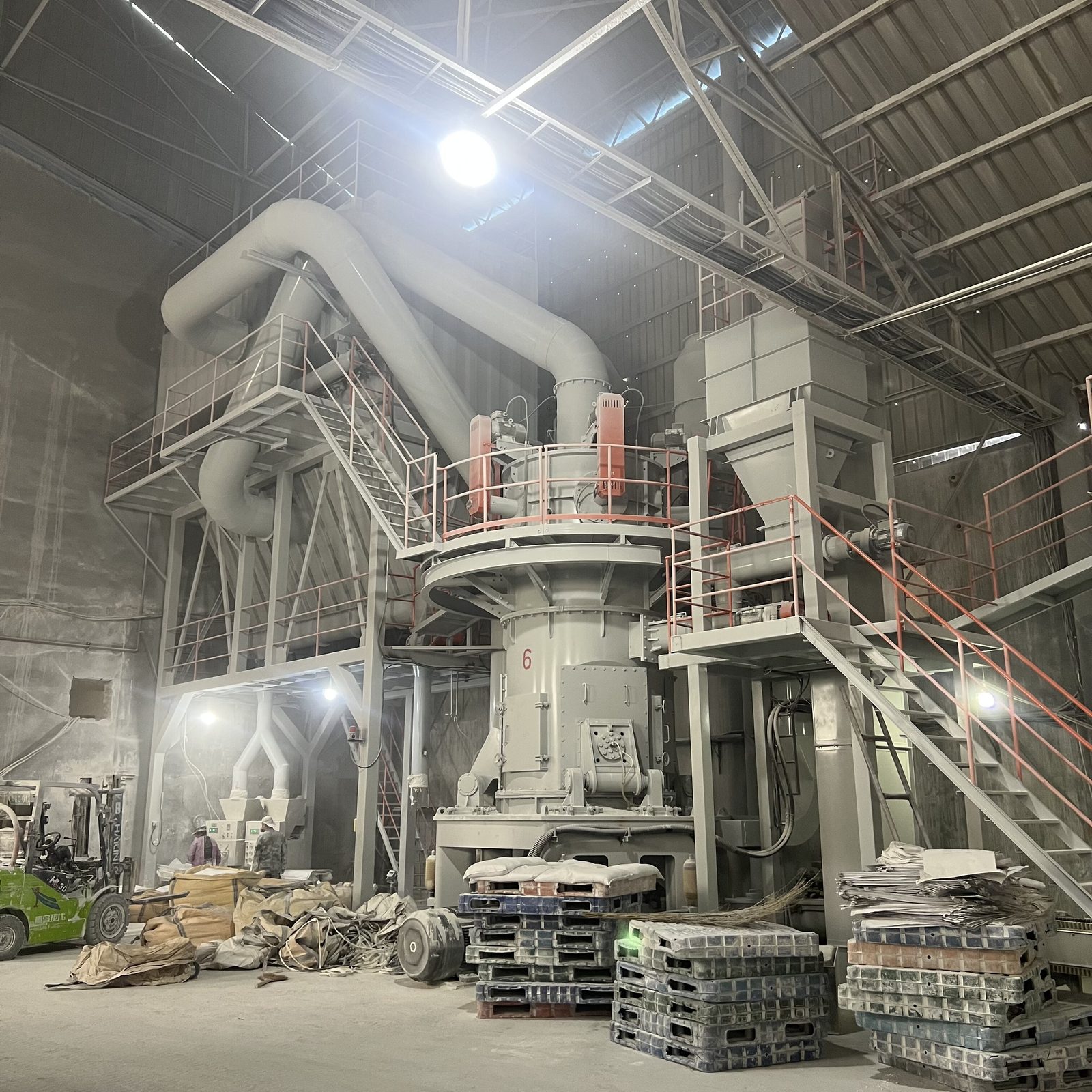

We produce GCC from selected calcite at Haicheng, Liaoning, in two families: powder from 600 mesh through to 2500 mesh, and coarse calcite sand at 10, 20 and 40–80 mesh. Our published enterprise standard TDHX-CC-2023-07 defines the calcium carbonate content, moisture and whiteness for each grade. The PVC-facing grades sit with the rest of the range on the ground calcium carbonate page, including the heavy calcium carbonate powder line.
Whether a given grade fits your line is a question of compounding, not of catalogue numbers alone. We supply samples with a certificate of analysis for trial runs, and the usual path for a new pipe customer is a sample trial followed by a defined batch specification.
How to specify calcium carbonate for PVC pipe
When you send an enquiry for GCC for rigid PVC, the details below let a supplier answer with the right grade instead of a generic one:
- Pipe type and standard — pressure (potable water), non-pressure drainage or conduit, and any standard the pipe must meet.
- Target coating — coated (activated) or uncoated, and the coating type your line is set up for.
- Particle size requirements — required distribution and top-cut, not only a mesh number.
- Colour requirements — whiteness target for visible pipe.
- Loading range you intend to run, so the grade is matched to that level rather than to a generic filler.
- Documentation — COA per batch, and whether you need a trial sample before a production order.
Values such as loading level and fineness that work in one plant do not transfer directly to another; they depend on the extruder, the stabiliser and lubricant package, and the pipe standard being targeted. The reliable approach is to fix those figures against a trial on your own equipment, and to treat our grade data as indicative rather than as a substitute for your own line trial. Filler behaviour in polyolefins is compared in our note on talc versus calcium carbonate as fillers.
